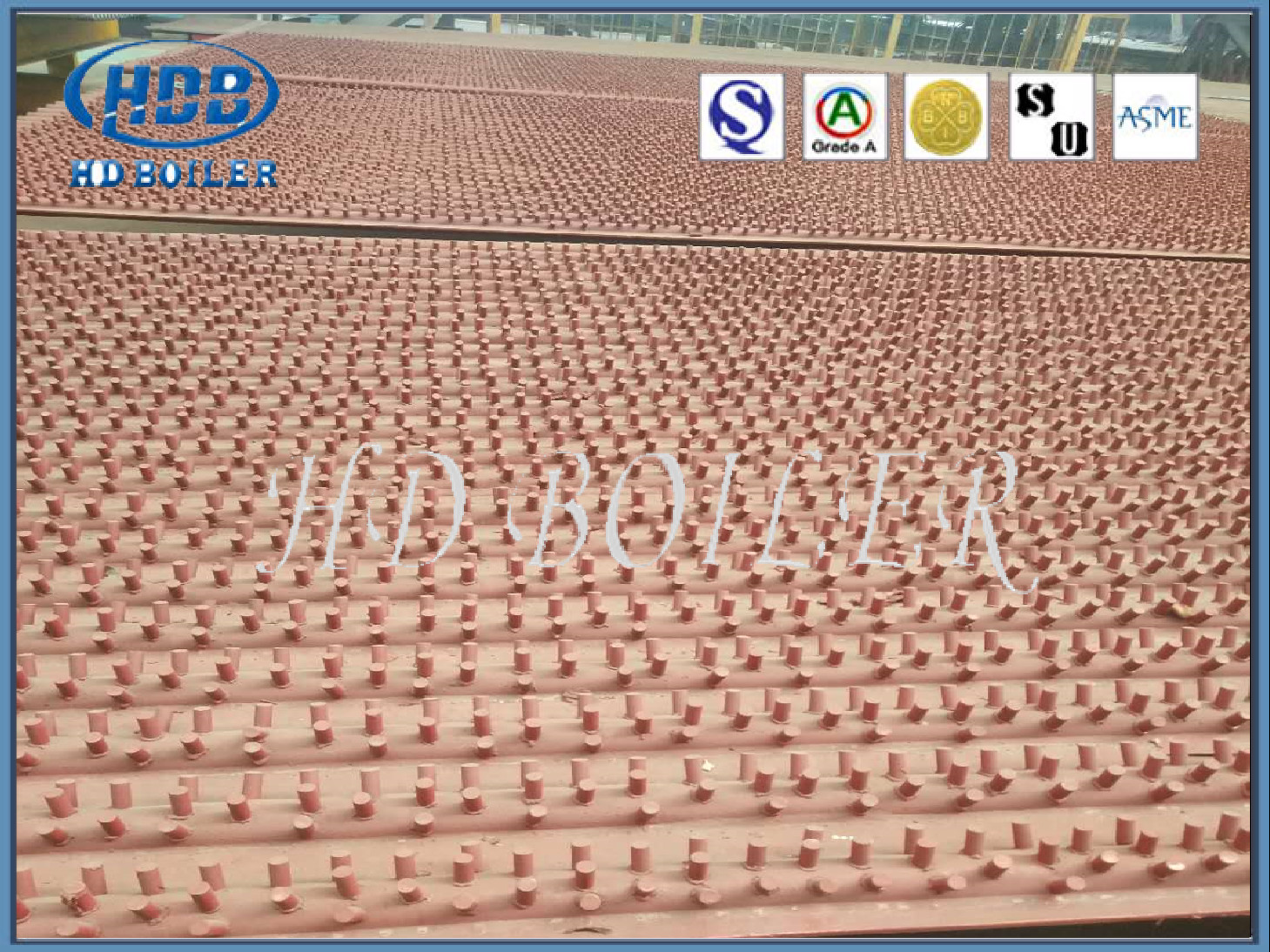

Heat Exchanger Painted Boiler Membrane Wall Boiler Parts For Power Station

Company Introduction of Boiler Membrane Wall

Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.

Product Description of Boiler Membrane Wall

A waterwall in a boiler is an furnace wall that is comprised of refractory and tubes in a water-tube boiler.The tubes are evenly spaced and generally connect to headers which in turn are connected back to the main generating bank of the boiler.They serve a two fold purpose here in that capture heat that would otherwise escape to the atmosphere and help heat the water in the boiler.And they also help keep the refractory cool(relatively speaking)This prevents spalling of the refractory.

Specification of Boiler Membrane Wall

Advantages of Boiler Membrane Wall

1. To guarantee the leakproofness of furnace wall and reduce the air leak of combustion chamber.

2. To achieve the full water cooling of combustion chamber, and the boiler accessories membrane water wall is benefit to prevent coking under the condition of supplemental firing.

3. The thermal storage capacity is small, the warming of combustion chamber is fast and the cooling is also fast, which could shorten the cooling time of boiler’s start and furnace shut down.

4. It is good to adopt top supported water cooled wall and it could reduce the load of boiler framework, which is benefit to overhang.

5. Compared with the bare tubes, the membrane water wall improves the heat absorption capacity of tubes.

6. The factory direct boiler membrane water wall could improve the Preliminary combination degree of boiler parts and reduce the installation workload.

Quality Control

1. Fabrication area of 200,000 square meters

2. 150 Engineers

3. 600 Coded welders

4. 60 Licensed Inspectors(NDT Level-III instructors)

5. Class-A Licenses for Design and Manufacture Boiler

6. ISO 9001:2008 Quality System

7. ASME Certificate of Power Boilers

8. ASME 'S','U' and NB stamp authorization

Hua Dong Boiler Co., Ltd. is a high-tech enterprise specialized in manufacturing boilers. Established in early 1985s, has two manufacturing bases, this company covers 400,000㎡ with fixed assets amounting to USD 110,000,000. There are 1100 employees including 150 technicians and 600 coded welders. Hua Dong holds the manufacturing licenses for Grade A boilers and Grade A1&A2 pressure vessels issued by Chinese General Administration of Quality Supervision, Inspection and Quarantine; also it holds the "S" and "U" "NB" stamps issued by American Society of Mechanical Engineers; meanwhile, this Company has passed the certification of ISO9001, SO3834, EN12952 Quality Management System.

"Hua Dong" boilers include Utility Boiler, HRSG Boiler, coal-fired , oil(gas) -fired, coal-water-slurry-fired and garbage-fired steam/hot water boilers, organic heat carrier boilers, etc., and Boiler spare parts (Economizer, Finned tube, Header, Steam drum, Superheater, Water wall panel, Air preheater, Cyclone separator, etc., which are widely used in power generation, heat supply, chemical engineering, textile, food, paper, road building, plastic, rubber and wood working industries. "HD" boilers are honored as "Famous Production in Jiangsu Province", " Jiangsu High-Tech Product" and "Jiangsu Energy-Saving Product". "HD" brand is a "Famous Brand in Jiangsu Province". We are a qualified supplier for the top three boiler manufacturers in China(Harbin Boiler Co., Ltd., Dong Fang Boiler Group Co., Ltd., Shanghai Boiler Works Ltd.,). So far, Hua Dong Boilers have served 10000 customers, which sell well all over China and are exported to USA, Australia, Russia, Kazakhstan, India, Indonesia, South Africa, Brazil, and Southeast Asia.

We strive to manufacture "Safe, Efficient, Energy-Saving and Environment-Friendly" boilers, provide new-type products in excellent quality, serve users sincerely to their satisfaction, and be a top supplier of boilers in China.

Declaration

Zhangjiagang Hua Dong Boiler Co.,Ltd has no subsidiaries.

Packaging & Shipping

Company Business

Our products have been wildly used in power plants and large international companies overseas.
