High Efficiency Industrial Circulating Fluidized Bed Boiler For Power Station

Zhangjiagang HuaDong Boiler Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap High Efficiency Industrial Circulating Fluidized Bed Boiler For Power Station from wholesalers

    Buy cheap High Efficiency Industrial Circulating Fluidized Bed Boiler For Power Station from wholesalers
    • Buy cheap High Efficiency Industrial Circulating Fluidized Bed Boiler For Power Station from wholesalers
    • Buy cheap High Efficiency Industrial Circulating Fluidized Bed Boiler For Power Station from wholesalers
    • Buy cheap High Efficiency Industrial Circulating Fluidized Bed Boiler For Power Station from wholesalers
    • Buy cheap High Efficiency Industrial Circulating Fluidized Bed Boiler For Power Station from wholesalers

    High Efficiency Industrial Circulating Fluidized Bed Boiler For Power Station

    Ask Lasest Price
    Brand Name : HD Boiler
    Model Number : CFB Boiler
    Certification : ISO9001,ASME,Grade A,SGS,EN,TUV
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 Sets /Year
    Delivery Time : Negotiation
    • Product Details
    • Company Profile

    High Efficiency Industrial Circulating Fluidized Bed Boiler For Power Station


    High Efficiency Circulating Fluidized Bed Boiler for Power Station


    Product Description

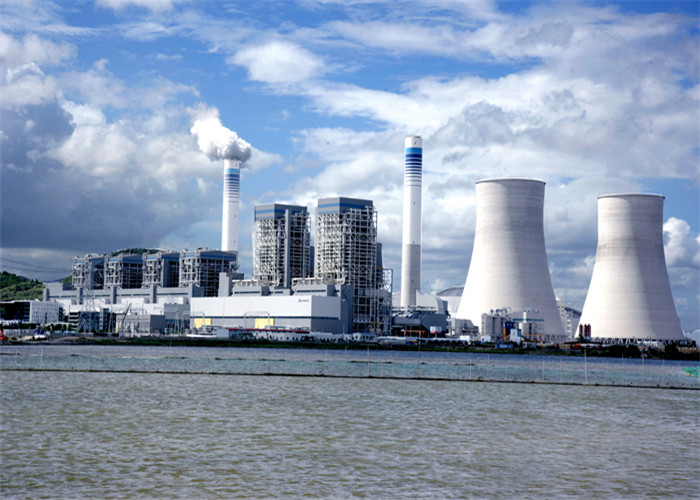

    HD circulating fluidized bed boiler is energy saving which is mainly installed at power plants to generate electricity.
    HD CFB boiler adopts stationary equipment design theory and CFB boiler technical parameter


    Structure Features

    • Natural circulation water-tube boiler single boiler barrel, an n-shaped structure.
    • The hearth is membrane water wall hanging closed structure.
    • Adopting the water cooling air chamber and a water cooling cloth wind plate, under the bed of water.
    • Separated by high temperature insulation volute cyclone cylider, outer furnace arrangement.
    • Superheater, economizer, air preheater is arranged in the tail shaft.​​


    Parameter

    ModelCapacity (t/h)Pressure(MPa)Steam temperature (ºC)

    Feed water temperature
    (ºC)

    Desulfurization efficiency
    HD-35/3.82-M353.82450150min 82
    HD-35/5.3-M355.3450150min 82
    HD-75/3.82-M753.82450150min 82
    HD-75/5.3-M755.3485150min 82
    HD-75/9.8-M1759.8540215min 82
    HD-130/3.82-M1303.82450172min 82
    HD-130/5.3-M1305.3485172min 82
    HD-130/9.8-M1309.8540215min 82

    Fuel:soft/lean/bituminou coal, anthracite,lignite,biomass and etc.



    Certifications


    Competitive Advantage


    Quality control and management to the whole produce process, including ingot smelting, hot-rolling, heat treatment, machining and strictly final inspection prior to delivery.
    Excellent product quality and service, competitive price, “in-time” delivery
